Round Separator Fine Salt Vibrating Screen Sieve Shaker Food Tumbler Machine

Product Categories

Xinxiang Dayong Vibrating Screen

Contact Now

Round Separator Fine Salt Vibrating Screen Sieve Shaker Food Tumbler Machine

Ask Lasest Price
Brand Name :	DY
Model Number :	DYB800/1000/1200/1600/2000/2400/2600
Certification :	ISO;CE
Price :	Negotiable
Payment Terms :	L/C,D/A,D/P,T/T,Western Union
Supply Ability :	100 Sets Per Month
Delivery Time :	10~15 Working Days

Add to Cart

Product Details
Company Profile

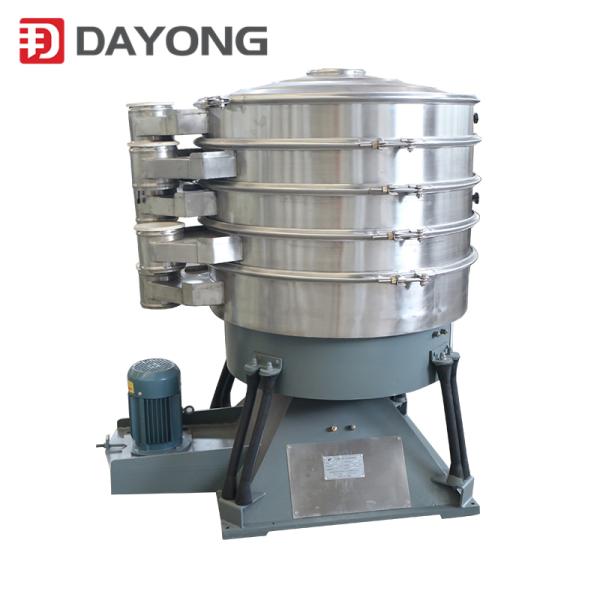

Round Separator Fine Salt Vibrating Screen Sieve Shaker Food Tumbler Machine

Product Description

Product Introduction

The tumbler screener is a low-frequency vibro sieving machine that is artificially oscillating for fine and ultra-fine screening. Round, cylindrical, flake, or even irregularly shaped materials can be sifted with up to 7 grades of ultra-fine sieving.
The instantaneous motion of tumbler screener is the combination of the radial displacement and the circular motion with the displacement along the axis (spiral motion). The exciter that can adjust the eccentricity produces a nonlinear three-dimensional motion, and the material also produces the same approximate manual movement to achieve the purpose of screening, and the screening accessory can be used to obtain one more ideal sieving effect.
As the result, the tumbler screener can realize one perfect sieving solution with 99% accuracy and more than 5 times higher output than tradition vibration sieving machines.

Technical Parameter

Model	Diameter(mm)	Screening surface(m²)	Layer	Power
DYB-800	800	0.292	1-5	0.25
DYB-1000	1000	0.785	1-5	1.5
DYB-1200	1200	1.13	1-5	2.2
DYB-1600	1600	1.83	1-5	3
DYB-2000	2000	2.63	1-5	4.0
DYB-2400	2400	4.52	1-5	5.5
DYB-2600	2600	5.31	1-5	5.5

Details Information

Main Features

It is used to sieve fine and super fine powder, especially, suitable for knotty process of raw material screening.
1. High Efficiency, the machine can imitate effectively manual screening motion and process, the raw material present a spiral involutes’ motion, the raw material and mesh screen happen to close contact, the accuracy of screening can up to 90-95%.
2. Protecting raw material, gentle tumbling screening can not damage the physical structure of raw material, not easy to produce static electricity, it will be the best choice for sieving flammable and explosive material.
3. Life is long, because the accelerated speed in vertical direction is very small and soft tumbling screening, so the mesh screen is not easy to be damaged and it extend the useful life for mesh screen and other parts.
4. Clean, bouncing ball can clean the surface of screen, to keep sanitary, ensure the continuity of screening; fully enclosed operation and more environmentally friendly.
5. Easy disassembly, circular modular construction, it is very simple to install and dismantle; besides, the outlet port can be adjustable to any direction at 360o.
6. Low noise, the noise is low to 75dB.

Using Scope

1. Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.

2. Abrasive material and ceramic industry: building sand, mica, alumina, antimony ore, silica sand, abrasive, refractory material, slurry, etc.

3. Food industry: sugar, salt, alkali, flour powder, nut powder, farina, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

5. Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.

6. Mechanical industry: casting sand, charcoal, metallurgy powder, aluminum powder, electromagnetic material and metal powder, etc.

Package & Shippment

Company Profile

Company Information

Xinxiang Dayong Vibration Equipment Co., Ltd., located in Xinxiang city, Henan province, China, which is an enterprise integrated scientific researching, device producing and product marketing. We mainly produces DY series vibrating screen, linear vibration sieve, test sieve, vibration conveyor, vibration feeder and other handling equipment.
Our company mainly produces the products for sieving, conveying, elevating, and crushing equipment. Our company has strong technical force, with the strategy aiming to obtain enterprise reputation, be bold in innovative technology and provides good service, and our company has become a well-known enterprise in the industry.

FAQ

Q: Please provide the following information for us.
1. material name.
2. the capacity you required (per hour)
3. Machine material. Please choose one:
a. Polypropylene PP plastic material
b. All stainless steel 304
c. All carbon steel
d. The contacting part is stainless steel, the other parts is carbon steel.
4. How many layers you need??
5. Please inform the voltage & frequency in your city.

Q: What is the real delivery time of your factory?
A: 7-10 days for general series products, meanwhile, customized products would need 10 days to 20 days based on different situations.

Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 18 months, our general after-sale service is changing the damaged parts for the customer. Normally, we will provide telephone guidance.
